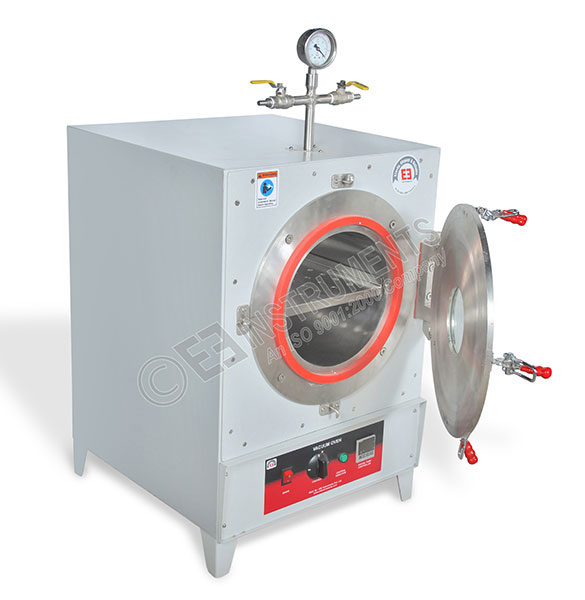

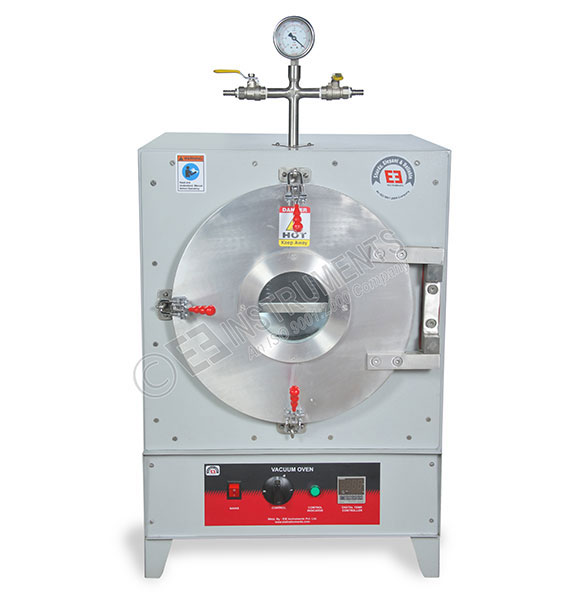

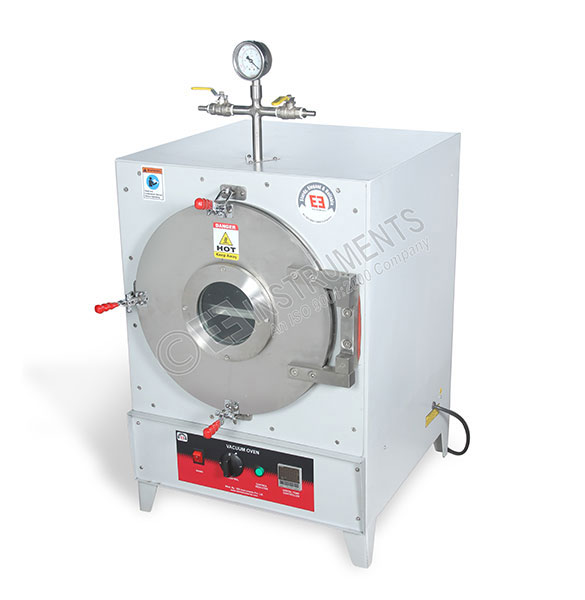

Vacuum Oven

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

Inner Chamber made of mirror Polished Stainless Steel (S.S. - 316) material & Outer body with Matt finished S.S. – 304 Material

Double walled design
Thick glass wool insulation to prevent heat loss
Microprocessor based AUTO-TUNE PID Digital Temp Controller cum indicator
Temperature range : 50 °C – 200 °C
Temperature Accu : ± 1 °C
Temperature display : Digital LED Display
Maximum vacuum : 760 mm of Hg with separate vacuum pump
Vacuum indication : 2” vacuum gauge
Operates on : 230 Volts, 50 Hz, Single phase, AC Supply
Door with Viewing window for sample observation
Silicon door gasket to prevent loss of chamber atmosphere
Special heavy duty stainless steel lock and door hinges
Heavy duty stainless steel trays for sample placement
Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and Test report
Calibration certificate with NPL Traceability for temperature sensor and Digital controller
Available in Round and Rectangular chamber sizes as per following

Inner chamber size (cms) (Dia x Depth)	Overall dimensions (cms) (D x W x H)	No of trays	Chamber capacity (Liters)	Power consumption (Kw)	Approx Weight (Kgs)	Digital Model Numbers (EIE-104ROP)	Digital GMP Model Numbers (EIE-104ROG)
20 x 25	52 x 45 x 64	1	8	0.75	40	EIE-104ROP08	EIE-104ROG08
25 x 30	57 x 50 x 72	1	14	0.75	50	EIE-104ROP14	EIE-104ROG14
30 x 30	67 x 60 x 82	2	21	1.0	70	EIE-104ROP21	EIE-104ROG21
30 x 38	67 x 60 x 97	2	27	1.25	90	EIE-104ROP27	EIE-104ROG27

Inner chamber size (cms) (D x W x H)	Overall dimensions (cms) (D x W x H)	No of trays	Chamber capacity (Liters)	Power consumption (Kw)	Approx Weight (Kgs)	Digital Model Numbers (EIE-104REP)	Digital GMP Model Numbers (EIE-104REG)
30 x 30 x 30	52 x 45 x 64	2	27	1.7	80	EIE-104REP27	EIE-104REG27
35 x 35 x 50	57 x 50 x 72	2	62	1.9	100	EIE-104REP62	EIE-104REG62
45 x 45 x 60	67 x 60 x 82	3	121	2.2	150	EIE-104REP121	EIE-104REG121
50 x 50 x 75	67 x 60 x 97	3	187	2.5	200	EIE-104REP187	EIE-104REG187
