HorizontalLaminarAirFlow - EIEPHARMA

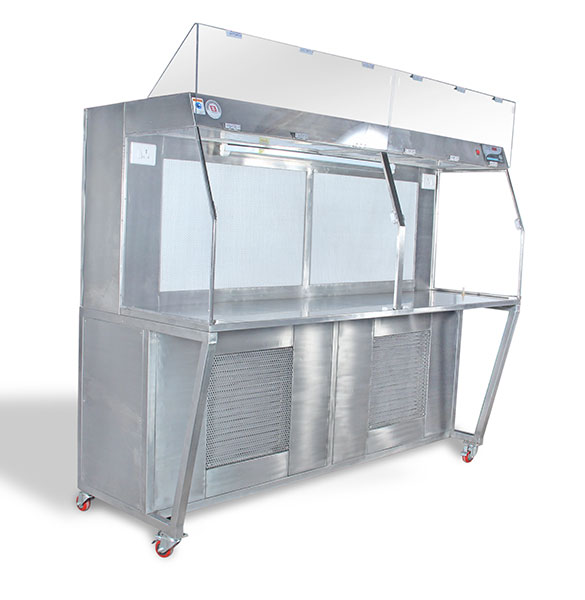

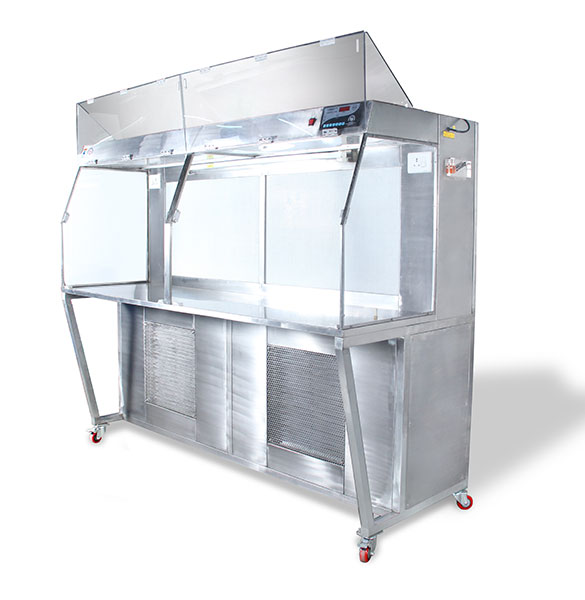

Horizontal Laminar Air Flow (EIE – 111H)

Standard Model (EIE – 111HP)

Working table made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades

GMP Model (EIE – 111HG)

Working table made of mirror polished Stainless Steel (S.S. 316) material & Outer body is fabricated from S.S.304 matt finished material.

Salient Features

  • Cleanliness : ISO Class 5 as per ISO 14644-1
  • S.S.304 work table
  • Polycarbonate front door
  • Mini Pleat HEPA Filter- separator less (H-14 rating)

Technical Specifications

  • Direction of flow : Horizontal
  • Velocity : 90 FPM ± 20%
  • Particle retention : Above 0.3 micron
  • Blower Assembly : 1/6 HP, 1440 RPM
  • Noise level : 65 decibel ± 5%
  • Rate of air flow : 0.40 to 0.75 M/Seconds (90 FPM)
  • Vibration level : <2.5 micron
  • HEPA Filter : MiniPleat HEPA Filter (H-14 Rating)
  • Efficiency : 99.997%
  • Work table : S.S. 304/S.S. 316 Grade

HEPA Filter

  • Media : Ultra clean glass fiber paper - imported
  • Type : Mini-Pleat HEPA Filter, Separator less
  • Retention : 0.3 Micron
  • Efficiency : 99.97%
  • Grade : H14 rating

PRE Filter

  • Media : Synthetic, non-woven polyester fibers
  • Casing : GI with PU coated frame
  • Retention : 5 Micron & above
  • Efficiency : 95 %

Standard accessories

Fitted with LED LIGHT FITTING, Gas cock, castor wheels, Inclined Manometer, additional 5 amp power point, side screens made of 4 mm polycarbonate.

Optional accessories

  • Microprocessor Controller indicating down flow velocity, Hour counting of UV Lamp & Motor/ blower and alarm for safe mode door-opening height, Date of HEPA FILTER change etc
  • On site Validation and Calibration, IQ/OQ/OQ certification

Available in following sizes

Working Table Size (Feet) HEPA Filter No of Pre-Filter UV Tube Model Nos. (EIE-111HP) GMP Model Nos. (EIE-111HG)
2 x 2 x 2 2 x 2 x 6 1 1 x 20 Watts EIE-111HP2 EIE-111HG2
3 x 2 x 2 3 x 2 x 6 1 2 x 20 Watts EIE-111HP3 EIE-111HG3
4 x 2 x 2 4 x 2 x 6 1 2 x 40 Watts EIE-111HP4 EIE-111HG4
6 x 2 x 2 3 x 2 x 6 (2 Nos) 2 2 x 40 Watts EIE-111HP6 EIE-111HG6
8 x 2 x 2 4 x 2 x 6 (2 Nos) 2 4 x 40 Watts EIE-111HP8 EIE-111HG8

H : Horizontal   |   P : Powder coating   |   G : GMP
